SupUTS High Strength Foundaton T76/2200 Heat Treatment SDA Hollow Threaded Bar
Features
With premium heat treatment technology, 2 types of threads profile available: R (Rope Thread) or T (trapezoidal); For permanent applications, optional HDG or epoxy coating can be provided to protect from corrosion; No cased borehole allowing ground preservation.
Hollow threaded bar is widely used in tunnel for pre-support, slope, coast, mine, water conservancy projects, foundation, roadbed reinforcement and geological faulty treatment such as landslip, crack, and sink age.
Applications
1. Mining
2. Radial systematic anchoring
3. Foundation for avalanche protect
4. Tunneling
5. Face stabilization
6. Slope stabilization
7. Water conservancy
Advantages
1. Labor & material cost saving
2. High installation rate
3. Difficult soil condition
4. Limited access
Technical Data
| Technical Details |
| SupUTS T Thread | T76/1400 | T76/1800 | T76/2200 | T114/2800 | T114/3450 |
| Ultimate load (kN) | 1400 | 1800 | 2200 | 2800 | 3450 |
| Load at 0.2% Yield (kN) | 1100 | 1400 | 1700 | 2100 | 2700 |
| Weight (kg/m) | 11.50 | 13.50 | 16.30 | 21.00 | 25.80 |
| Tensile strength (N/mm2) | ＞ 1100 | ＞ 1100 | ＞ 1100 | ＞ 1100 | ＞ 1100 |
| Yield strength (N/mm2) | ＞ 900 | ＞ 900 | ＞ 900 | ＞ 900 | ＞ 900 |
| Outside diameter (mm) | 76 | 76 | 76 | 114 | 114 |
| Internal diameter (mm ) | 64 | 60 | 56 | 96 | 92 |
| Cross sectional area (mm2) | 1465 | 1719 | 2076 | 2670 | 3280 |
| Type of steel | 40Cr | 40Cr | 40Cr | 40Cr | 40Cr |
| Elongation A100 mm | ≧ 5% | ≧ 5% | ≧ 5% | ≧ 5% | ≧ 5% |
| Thread type | T International Standard / Left or Right |
| Length (m) | (1) x2, x3, x4 |

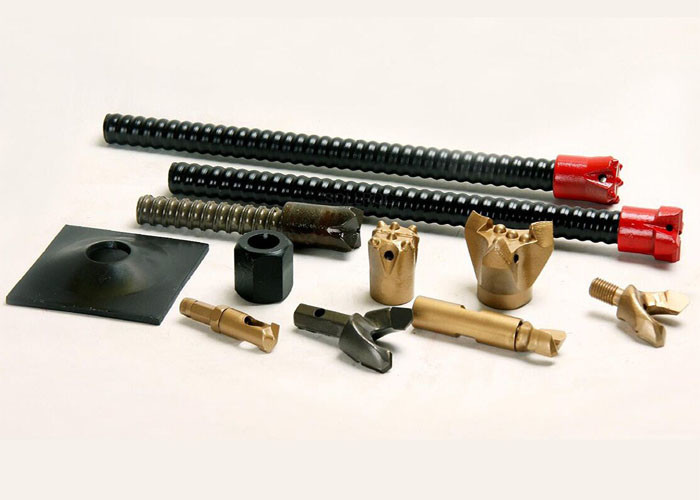

Anchor Bar and Accessories
Job sites
SubNumbers
10 Years - The average seniority > 10 years, which is not common in anchor manufacturing industry.
20 Years - 20 years of exporting experience, familiar with different product standards from different
customers and countries.
26 Years - 26 years of exploration and development, SupAnchor has become the No.1 SDA bar
manufacturer in Asia.
60 Countries - customers from 60 countries. Our self drilling anchor systems have been used by
customers from 50 countries all over the world, including America, Chile, Germany,
Australia India, etc.
1,500 Projects - SupAnchor’s products have been widely used in over 1500 massive projects.
